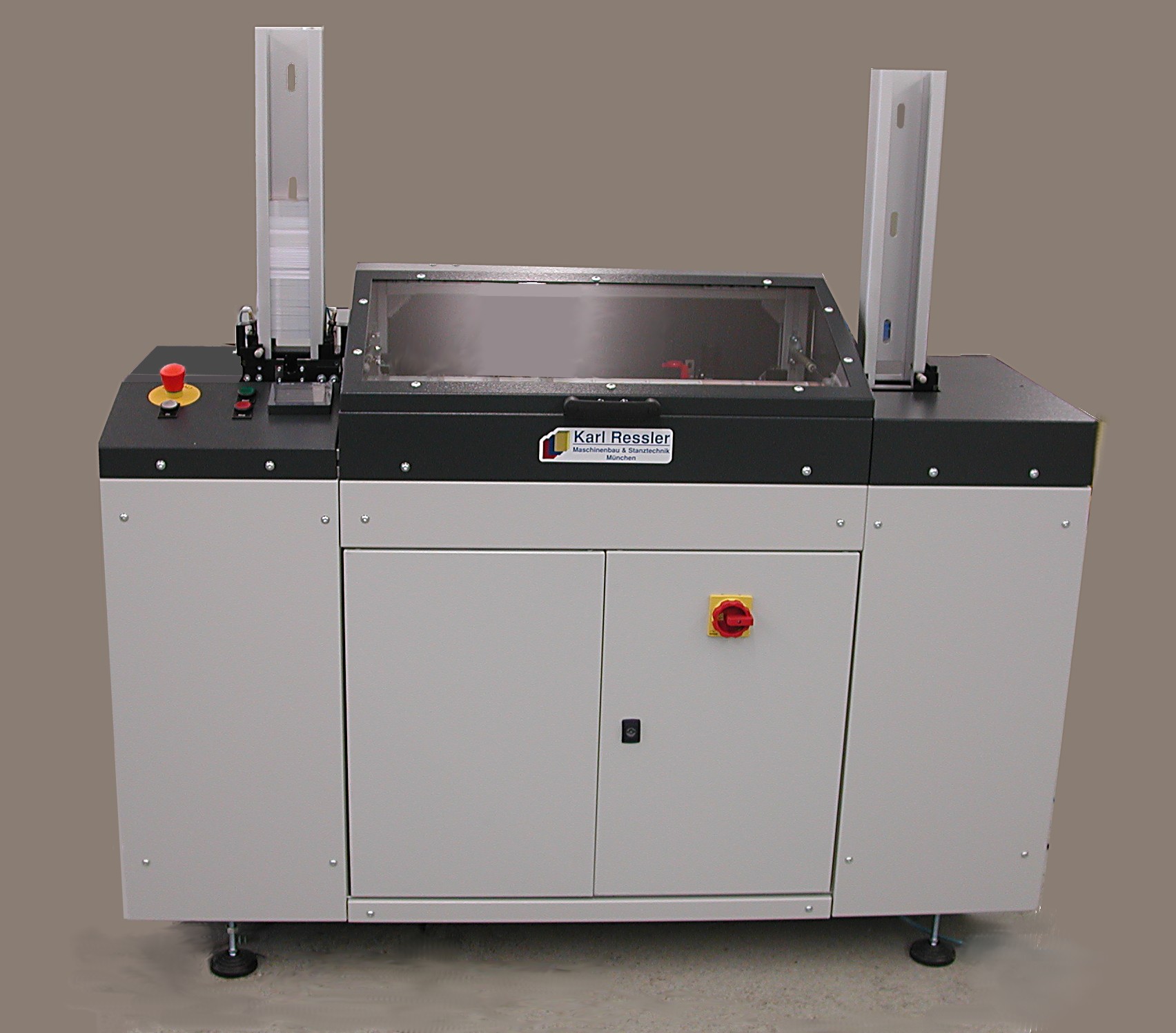

Chip Coding Machine CIM 3000-S1


The CIM 3000-S1 is a machine for automatic writing high-volume series of contact-chip cards or contactless (RFID) chip cards.

Up to 8 cards lying on a conveyer belt can be written simultaneously when they have been positioned under the 8 writing stations, each with a computer connection. After that they are transported into an output magazine while the next 8 cards are positioned for writing.

Technical Data

  • Card dinensions: 54 x 86 mm
  • Throughput: depending on writing time 400-3000 cards/h
  • Electric power supply: 230 V AC, 1.5 kVA
  • Compressed air supply: 6 bar
  • Machine size L x W x H: 1300 x 500 x 1500 mm
